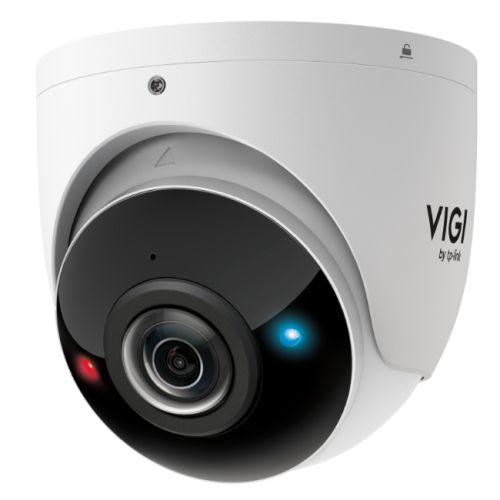

TP-LINK (InSight S485PI) VIGI 8MP Outdoor IR Panoramic Turret Network Camera, IP67, PoE, 180° Panorama, AI Detection/Classification, Red-Blue Warning Lights

VIGI C540 8MP 180° Panoramic Turret Security Camera - 4K IR Night Vision

Experience comprehensive surveillance coverage with this professional-grade 8MP panoramic security camera. The 180-degree ultra-wide field of view eliminates blind spots while delivering crystal-clear 4K resolution, making it ideal for monitoring large areas like warehouses, parking lots, hotel lobbies, and commercial entrances. Advanced AI-powered detection capabilities distinguish between people and vehicles, reducing false alarms while ensuring critical events are never missed.

Engineered for demanding security applications, this turret camera features active defense technology with red-blue warning lights and two-way audio communication to deter intruders in real-time. The ruggedized IP67 weatherproof and IK10 vandal-resistant housing ensures reliable 24/7 operation in harsh outdoor conditions. With infrared night vision up to 65 feet and H.265+ compression technology, you get superior image quality while minimizing bandwidth and storage requirements.

Technical Specifications

• Image Sensor: 1/2.7" Progressive Scan CMOS with 8MP resolution
• Lens: 1.65mm fixed focal length, F2.0 aperture, M12 mount
• Field of View: 180° horizontal, 86° vertical panoramic coverage
• Night Vision: 4x 850nm IR LEDs with 65ft (20m) range
• Video Compression: H.265+/H.265/H.264+/H.264 with dual streaming
• Frame Rate: Up to 30fps at 4K resolution (3840×2160)
• Network: 10/100M Ethernet with PoE+ power delivery
• Audio: Built-in microphone/speaker with two-way communication
• Storage: MicroSD card slot (up to 512GB capacity)
• Power Requirements: PoE+ 802.3at (21W max) or 12V DC (18W max)
• Environmental Rating: IP67 weatherproof, IK10 vandal-resistant
• Operating Temperature: -30°C to 60°C (-22°F to 140°F)

Key Features

• Ultra-Wide 180° Panoramic View - Cover extensive areas with a single camera installation
• 4K Ultra HD Resolution - Capture fine details with 8MP image clarity
• AI-Powered Analytics - Advanced people and vehicle detection with classification
• Active Defense System - Red-blue warning lights with customizable audio alerts
• Smart IR Technology - Adaptive infrared illumination prevents overexposure
• True WDR Enhancement - Superior performance in high-contrast lighting conditions
• 3D Digital Noise Reduction - Clear footage in low-light environments
• ONVIF Profile S/T/G - Universal compatibility with third-party VMS systems
• Mobile App Control - Remote monitoring via VIGI smartphone application
• Flexible Installation - Pan 360°, tilt 75°, rotate 360° mounting adjustability

Warranty: 5-Year Manufacturer Limited Warranty
