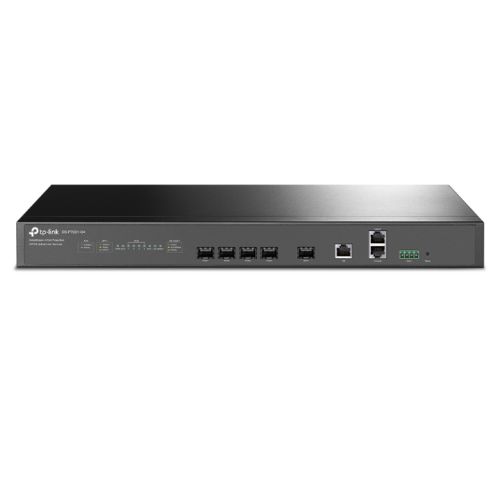

DeltaStream 4-Port GPON Optical Line Terminal | 10GE Uplink | 1:128 Split Ratio

The DeltaStream 4-port pizza-box OLT delivers enterprise-grade GPON performance with support for up to 512 ONTs through its advanced 1:128 splitting ratio per port. Engineered for service providers and network operators, this carrier-class terminal combines 10 Gigabit uplink capabilities with comprehensive Layer 2/3 functionality for demanding fiber-to-the-home deployments.

Built with redundant dual power supplies and compact 1U form factor, this optical line terminal ensures maximum uptime while minimizing rack space requirements. The integrated DeltaStream PON Management System (DPMS) provides centralized control across multiple sites, enabling efficient network monitoring, batch configuration, and intelligent fault management for scalable FTTH infrastructure.

Technical Specifications

  • GPON Ports: 4 x 2.5G PON ports with 1:128 maximum splitting ratio
  • Uplink Connectivity: 1 x 10GE SFP+ port, 1 x Gigabit Ethernet RJ45 port
  • Management Interfaces: RJ45 console port, RJ45 management port, alarm port
  • Power Supply: Dual redundant AC (100-240V) and DC (-38.4V to -72V)
  • Data Rates: 2.5 Gbps downstream, 1.25 Gbps upstream
  • Optical Specifications: Tx 1490nm, Rx 1310nm, 20km reach, SMF 9/125μm
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Dimensions: 440 x 180 x 44mm (1U rack-mountable)
  • Power Consumption: Maximum 58W
  • Warranty: 3 Years

Key Features

  • Massive Scale Support: Connect up to 512 ONTs with single device deployment
  • Carrier-Class Reliability: Redundant power supplies ensure 99.9% uptime
  • Advanced Traffic Management: IEEE 802.1p/DSCP QoS, voice VLAN, auto VoIP detection
  • Comprehensive Security: 802.1x authentication, ARP inspection, rogue ONU detection
  • Multi-Service Capabilities: Traffic identification, rate limiting, static routing
  • Intelligent Management: DPMS centralized control, SNMP, CLI, and web interface
  • IGMP/MLD Snooping: Optimized multicast delivery for IPTV applications
  • Flexible Installation: Compact pizza-box design with rack mounting hardware included
