Arctic S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

Arctic S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

Vendor: ARCTIC
SKU: ACFAN00294A
Barcode: 4895213704762
Availability: Out Of Stock
Checking delivery options...
£19.99
£19.99
Hurry up! Only 0 left
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • PayPal
10 customers are viewing this product

Next Day Delivery Available

For orders made before 2pm Mon-Fri

Quality Guaranteed

Backed by comprehensive manufacturer warranty coverage

30-Day Returns

Changed your mind? No problem - you have 30 days to return.

Secure checkout

We accept all major credit and debit cards, as well as paypal.
Arctic S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

Arctic S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

£19.99

Arctic S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

£19.99

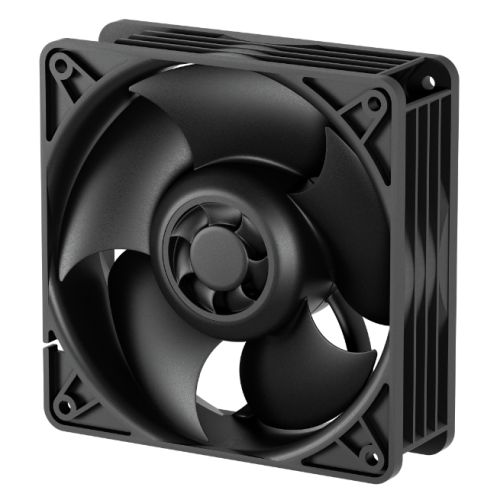

ARCTIC S12038-8K - Professional 120mm High-Performance Server Fan | 8000 RPM PWM

Engineered for mission-critical server environments, the ARCTIC S12038-8K delivers exceptional cooling performance with 22% greater energy efficiency than competing solutions. This premium 120mm server fan combines extraordinary static pressure (37 mmH2O) with impressive airflow (220 CFM) to tackle demanding thermal challenges in enterprise-grade systems.

Built for continuous operation with Japanese dual ball bearings in a brass housing, the S12038-8K features active motor cooling technology that doubles service life by maintaining 10°C lower operating temperatures. The wide PWM speed range (800-8000 RPM) provides precise thermal control for optimal performance across varying server loads, while comprehensive protection circuits ensure reliable operation in industrial environments.

Technical Specifications


- Dimensions: 120 x 120 x 38mm
- Speed Range: 800-8000 RPM (PWM/Voltage controlled)
- Static Pressure: 37 mmH2O
- Maximum Airflow: 220 CFM
- Power Requirements: 12V DC, 2.2A (3.2A max)
- Start-up Voltage: 6.5V DC
- Bearing Type: Dual Ball Bearing with Brass Housing
- Connector: 4-Pin PWM (2510 connector)
- Cable Length: 300mm
- Weight: 328g
- Operating Temperature: Up to 70°C ambient

Key Features


- Energy Efficient Design: 22% lower power consumption vs competitors
- Active Motor Cooling: Additional impeller extends service life significantly
- High Static Pressure: 37 mmH2O for dense fin arrays and restrictive airflow
- Wide Speed Control: Precise PWM regulation from 800-8000 RPM
- Enterprise Grade Bearings: Japanese dual ball bearings in brass housing
- Protection Circuits: Reverse polarity, overvoltage, and overcurrent protection
- Server Compatible: Fits 3U+ chassis, standard mounting points
- Industrial Rated: Designed for continuous operation in harsh environments
- Dust Protection: Includes impeller cover sticker for dusty conditions
- Extended Warranty: 6-year manufacturer warranty with proven reliability
