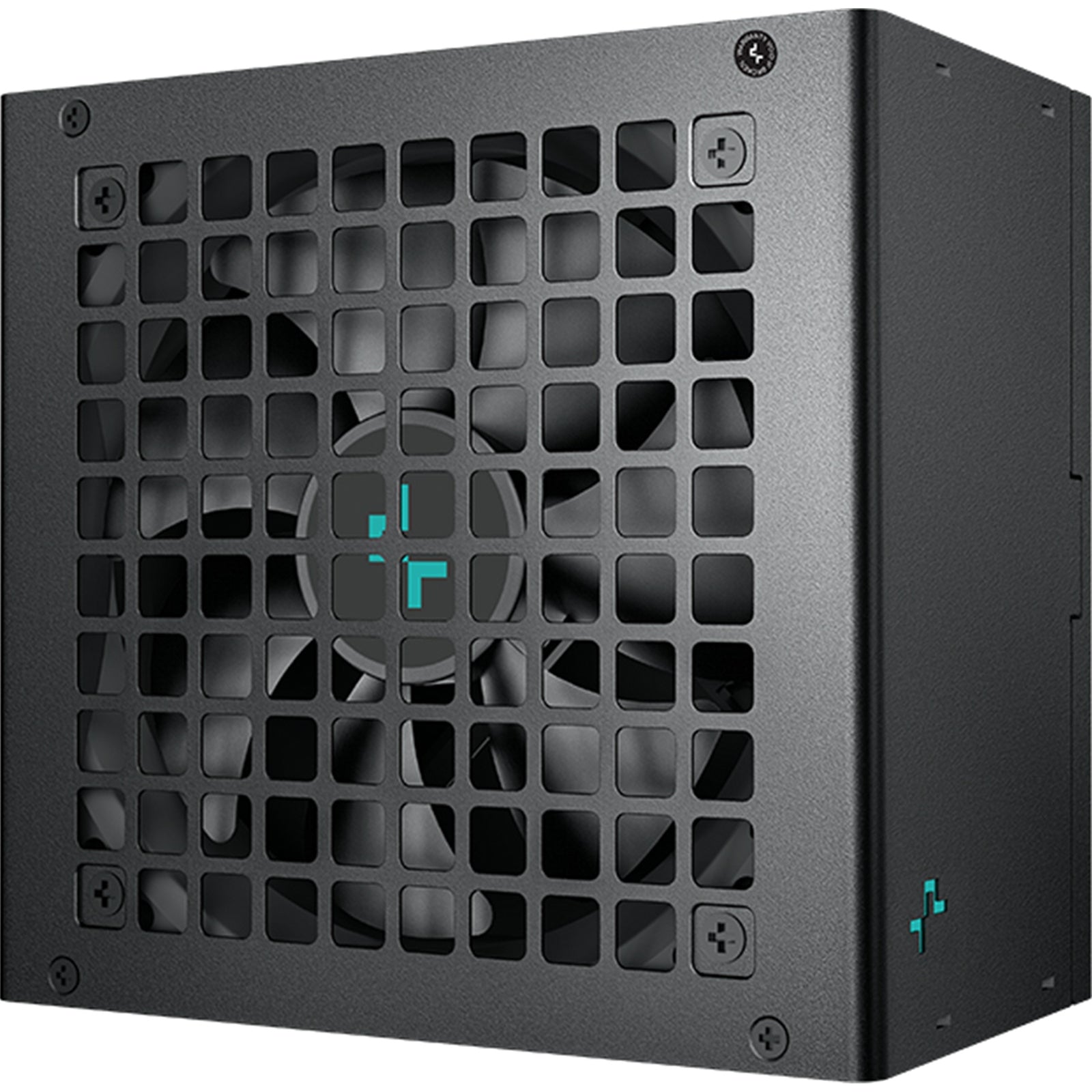

DeepCool PL750D 750W Power Supply, ATX12V V3.1, 80 PLUS Bronze, Non-Modular, 120mm Hydro Bearing Fan, 12VHPWR PCIe 5.0, 5-Year Warranty

DeepCool PL750D 750W ATX PSU - 80 PLUS Bronze with PCIe 5.0 Support

The DeepCool PL750D delivers dependable 750W power output with Intel ATX12V V3.1 compliance, making it an ideal choice for mid-range gaming builds and workstations. This non-modular PSU combines proven reliability with modern connectivity, featuring the latest 16-pin 12VHPWR connector to support next-generation RTX 40-series and future high-performance graphics cards.

Built with Active PFC topology and premium Japanese capacitors, this power supply achieves 80 PLUS Bronze efficiency certification while maintaining stable voltage regulation across all rails. The whisper-quiet 120mm hydro-bearing fan provides optimal thermal management, while comprehensive protection circuits safeguard your valuable components against power fluctuations and electrical faults.

Technical Specifications

• Power Output: 750W continuous power
• Efficiency Rating: 80 PLUS Bronze (≥85% at 50% load)
• Form Factor: ATX12V V3.1 standard
• Dimensions: 150mm (W) × 140mm (D) × 86mm (H)
• Cooling System: 120mm hydro-bearing fan
• Topology: Active PFC + DC-to-DC conversion
• MTBF Rating: 100,000 hours
• Operating Temperature: 0°C to 40°C
• Hold-Up Time: ≥16ms

Key Features

• PCIe 5.0 Ready: Includes 16-pin (12+4) 12VHPWR connector for RTX 40-series GPUs
• Comprehensive Connectivity: 8× SATA, 3× PCIe 6+2-pin, 2× CPU 4+4-pin connectors
• Advanced Protection Suite: OVP, UVP, OCP, OTP, SCP, OPP, and surge protection
• Premium Components: High-grade electrolytic capacitors for enhanced durability
• Silent Operation: Optimized fan curve for minimal noise output
• Global Certifications: CE, FCC, TUV, RoHS compliant with 5-year warranty
• No-Load Operation: Intelligent standby mode for improved efficiency
• Dual CPU Support: Twin 4+4-pin connectors for high-end motherboards
