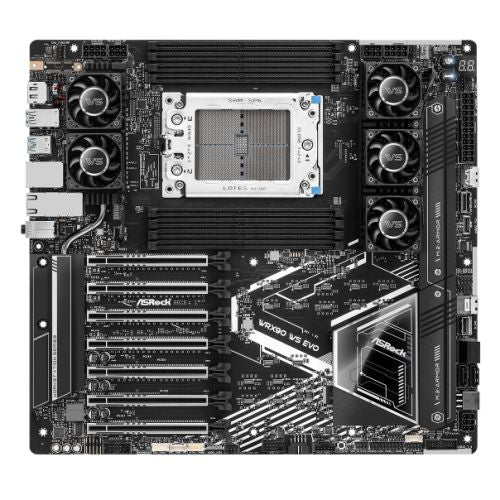

xASRock WRX90 WS EVO Workstation Motherboard - AMD sTR5 Socket, 7x PCIe 5.0 x16, 2TB DDR5 ECC
Professional-grade workstation motherboard engineered for AMD Ryzen™ Threadripper™ PRO processors, delivering uncompromising performance for high-end computing environments. Features server-grade 14-layer PCB construction with 2oz copper layers and ultra-low loss design for superior signal integrity and thermal efficiency.
Built for demanding professional applications including deep learning, 3D rendering, and simulation workflows. The robust 18+3+3 phase power delivery system with 110A SPS design ensures stable operation under extreme computational loads, while advanced VRM cooling with composite heatsinks maintains optimal temperatures during intensive operations.
Technical Specifications
* Socket: AMD sTR5 (Threadripper™ PRO processors)
* Chipset: AMD WRX90
* Form Factor: EEB Server/Workstation
* Memory: 8x DDR5 ECC RDIMM slots, up to 2TB capacity, 7600+ MHz (OC)
* Expansion: 7x PCIe 5.0 x16 slots
* Storage: 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA III, 2x MCIO, 2x SlimSAS SFF-8654
* Networking: Intel® X710 dual 10GbE LAN + dedicated IPMI management port
* Audio: Realtek ALC1220 7.1 HD Audio with Nahimic enhancement
* USB: 2x USB4 Type-C (40Gbps), multiple USB 3.2 Gen2/Gen1 ports
* Management: Aspeed AST2600 BMC controller with remote IPMI
* Power: Multi-PSU support with adaptor cable included
* Warranty: 3 Year Replacement Warranty
Key Features
* Server-Grade PCB Design - 14-layer ultra-low loss construction with 2oz copper for enhanced signal integrity
* Extreme Memory Capacity - Supports up to 2TB DDR5 ECC registered memory across 8 DIMM slots
* Maximum Expansion - Seven PCIe 5.0 x16 slots for GPU arrays and professional add-in cards
* Enterprise Storage - PCIe 5.0 Blazing M.2 (128Gb/s), MCIO and SlimSAS server-grade connections
* Dual 10GbE Networking - Intel X710 controller with Cat6 compatibility and dedicated IPMI management
* Advanced Cooling - Composite VRM heatsinks with active fans and heat pipes
* USB4 Connectivity - 40Gbps data transfer with PD 3.0 fast charging (60W)
* Remote Management - Full IPMI support via AST2600 BMC for out-of-band administration
* Professional Audio - Nahimic-enhanced 7.1 surround with noise cancellation and sound tracking
* Flexible Power - Multi-PSU support for high-wattage configurations
