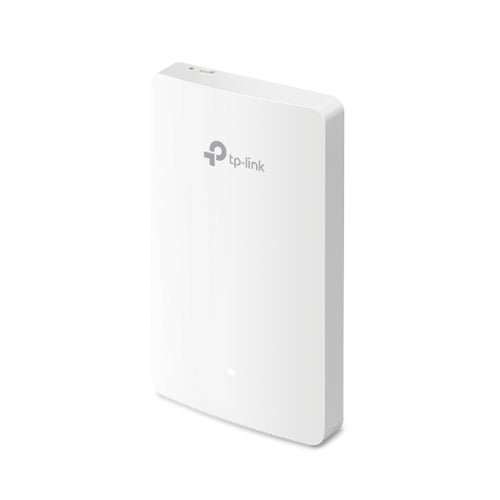

TP-LINK (EAP235-WALL) Omada AC1200 Wireless Wall Mount Access Point, Dual Band, PoE, Gigabit, MU-MIMO, Free Software

TP-Link Omada EAP235-Wall AC1200 Dual-Band Wall Plate Access Point with MU-MIMO

Transform any room into a high-performance wireless zone with this ultra-slim wall plate access point. Delivering AC1200 speeds through dual-band connectivity (300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz), this enterprise-grade solution integrates seamlessly into hotels, offices, dormitories, and healthcare facilities while providing dedicated Wi-Fi coverage for each space.

Built for professional deployments, this access point features four Gigabit Ethernet ports with PoE pass-through capability, enabling simplified installation without additional power infrastructure. The Omada SDN integration provides centralized cloud management, zero-touch provisioning, and intelligent monitoring through the intuitive mobile app, making it ideal for multi-site enterprise networks requiring scalable wireless solutions.

Technical Specifications

• Wi-Fi Standard: 802.11ac Wave 2 (Wi-Fi 5)
• Wireless Speed: AC1200 (300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz)
• Ethernet Ports: 4x Gigabit (1 uplink, 3 downlink with PoE pass-through)
• Antennas: 2x dual-band internal antennas (4 dBi each band)
• Power Requirements: 802.3af/at PoE (9.8W / 24.4W with PoE out)
• Dimensions: 143 × 86 × 20 mm (ultra-slim 15mm profile)
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Mounting: Compatible with 86mm, EU, and US standard junction boxes
• Management: Omada SDN, cloud access, SNMP, SSH, HTTP/HTTPS
• Warranty: Limited Lifetime

Key Features

• MU-MIMO Technology - Simultaneous data transmission to multiple devices for enhanced network efficiency
• Omada SDN Integration - Centralized cloud management with zero-touch provisioning and intelligent monitoring
• Ultra-Slim Design - Inconspicuous 15mm profile blends seamlessly with room aesthetics
• PoE Pass-Through - Power connected devices like VoIP phones through integrated PoE output (13W max)
• Advanced Wireless Technologies - Band steering, beamforming, and load balancing for optimized performance
• Enterprise Security - 802.1X authentication, captive portal, VLAN mapping, and rogue AP detection
• Flexible SSID Support - Up to 16 SSIDs (8 per band) with individual configuration options
• Guest Network Management - Multiple authentication methods including SMS, social media, and voucher systems
• Mobile App Control - Complete network management through Omada smartphone application
• Quality of Service - WMM support with rate limiting and traffic prioritization
